The OS30P+ pulse-amplitude modulated Chlorophyll Fluorometer is a handheld instrument designed for rapid assessment of plant physiological status using chlorophyll fluorescence techniques.
Utilizing cutting-edge pulse-modulated fluorescence technology, the OS30P+ precisely measures widely used critical parameters such as FV/FM, FV/FO, and performs comprehensive OJIP analysis to evaluate plant health and stress.
How it works
The OS30P+ uses pulse-modulated detection methods to measure chlorophyll fluorescence.
- After dark adaptation, the instrument first determines minimum fluorescence (FO) using a weak modulated light that excites the chlorophyll without initiating photosynthesis.
- A powerful saturation pulse then closes all available photosystem II (PSII) reaction centres, providing maximum fluorescence (FM).
- From these parameters, it calculates important indicators such as FV/FM (maximum quantum efficiency) and FV/FO, sensitive indicators of plant stress.
- The advanced OJIP test further provides detailed stress analysis through a high-resolution fluorescence induction curve.
Key features
- Advanced Pulse Modulated Technology:
Delivers precise measurement of chlorophyll fluorescence parameters under diverse environmental conditions. - FV/FM Measurement:
Determines maximum quantum efficiency, highly correlated with plant health and stress levels affecting PSII. - Enhanced OJIP Test:
Provides detailed analysis of fluorescence induction curves to identify specific stress impacts on plant physiology.
- Integrated Auto-Calibration:
Automatically calibrates modulated and actinic light intensities for reliable and consistent measurements. - Flexible Measurement Options:
Customizable saturation pulse intensity and duration settings to accommodate a wide range of plant types and experimental conditions. - High-Capacity Data Storage:

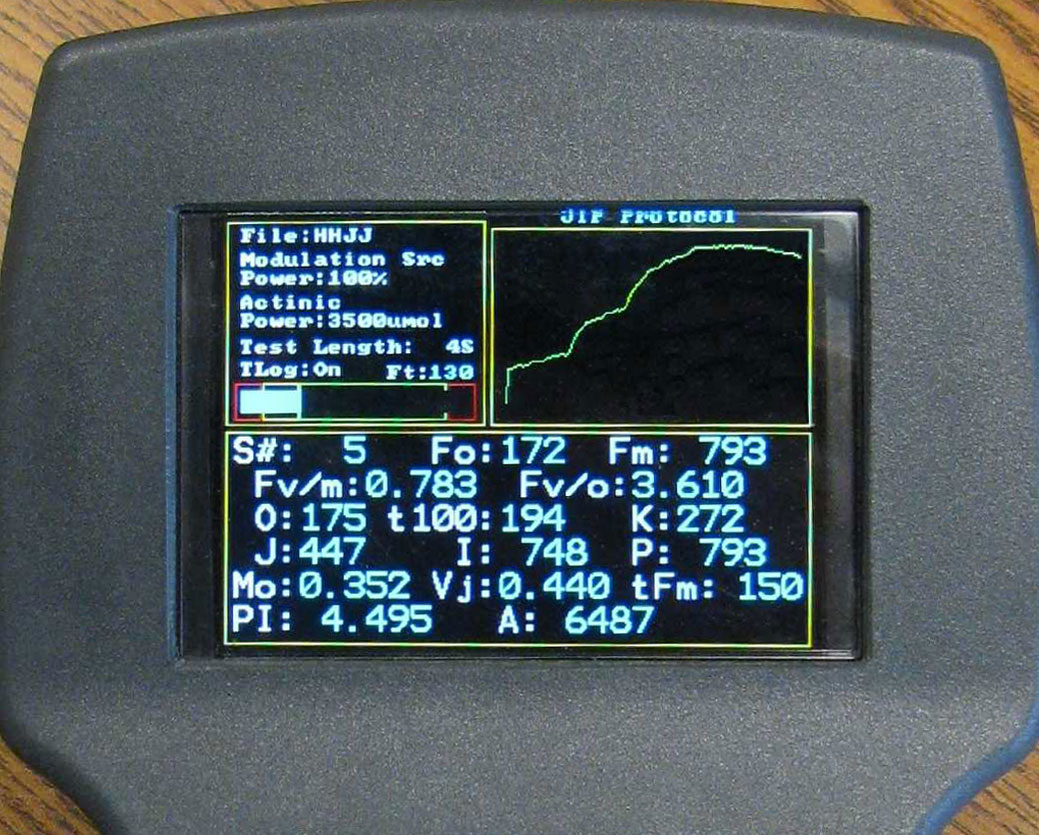

Stores and graphically displays up to 32 fluorescence traces directly on the instrument for immediate analysis.
- User-Friendly Interface:
A full-colour graphical display with an intuitive menu-driven interface simplifies operation and data interpretation. - Portable and Field-Ready:
Lightweight, durable design makes it ideal for field applications, complete with rechargeable batteries and ergonomic integration of the optical probe.
Take the next step
Unlock deeper insights into plant health and stress responses with the OS30P+ Chlorophyll Fluorometer. Contact us today for further information, to arrange a demonstration, or to order your OS30P+.
Resources
Technical documents
Product brochure
References
Applications
Detection of plant stress including:
- drought
- heat
- cold
- salinity
- nutrient deficiency
- disease
