CCM-300 Chlorophyll Content Meter

The CCM-300 Chlorophyll Content Meter is a handheld device designed specifically to measure chlorophyll content using a fluorescence ratio technique pioneered by Gitelson et al. (1999).

Ideal for small, thick, curved, or otherwise difficult-to-measure samples, the CCM-300 reliably assesses chlorophyll concentration across a broad range, offering precise data for researchers, agronomists, and environmental scientists.

Discover more

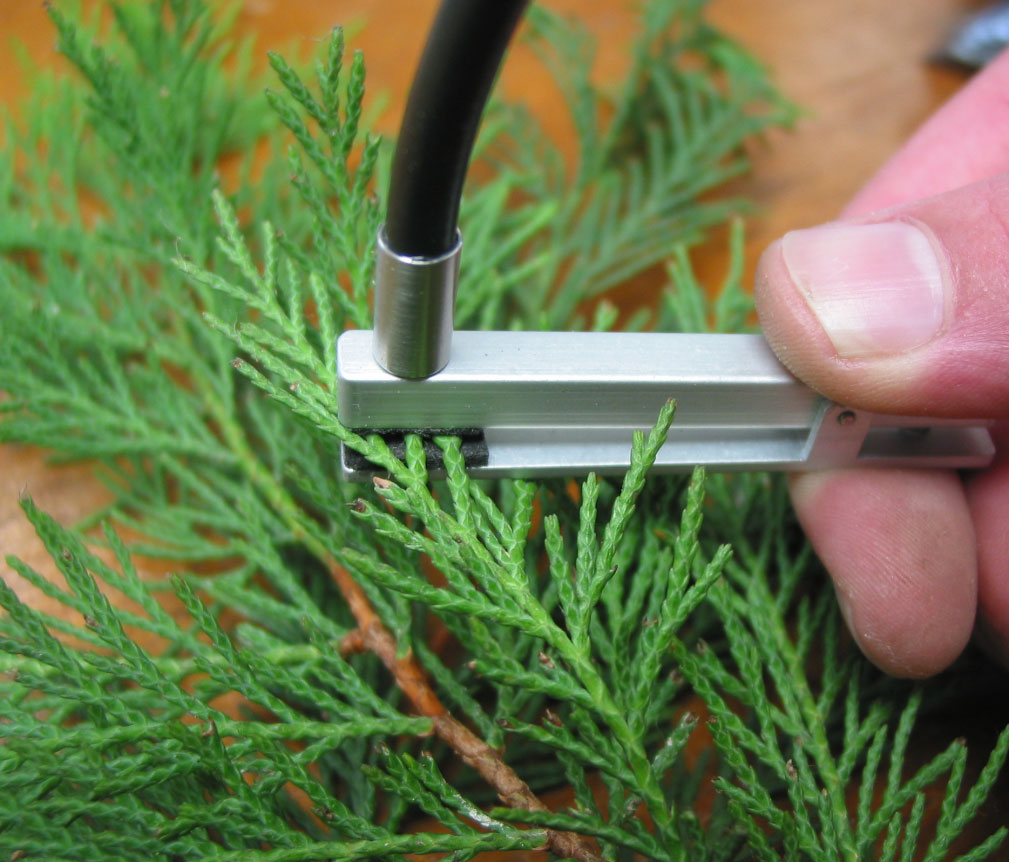

  • Measuring conifer chlorophyll content with the CCM-300 leaf clip

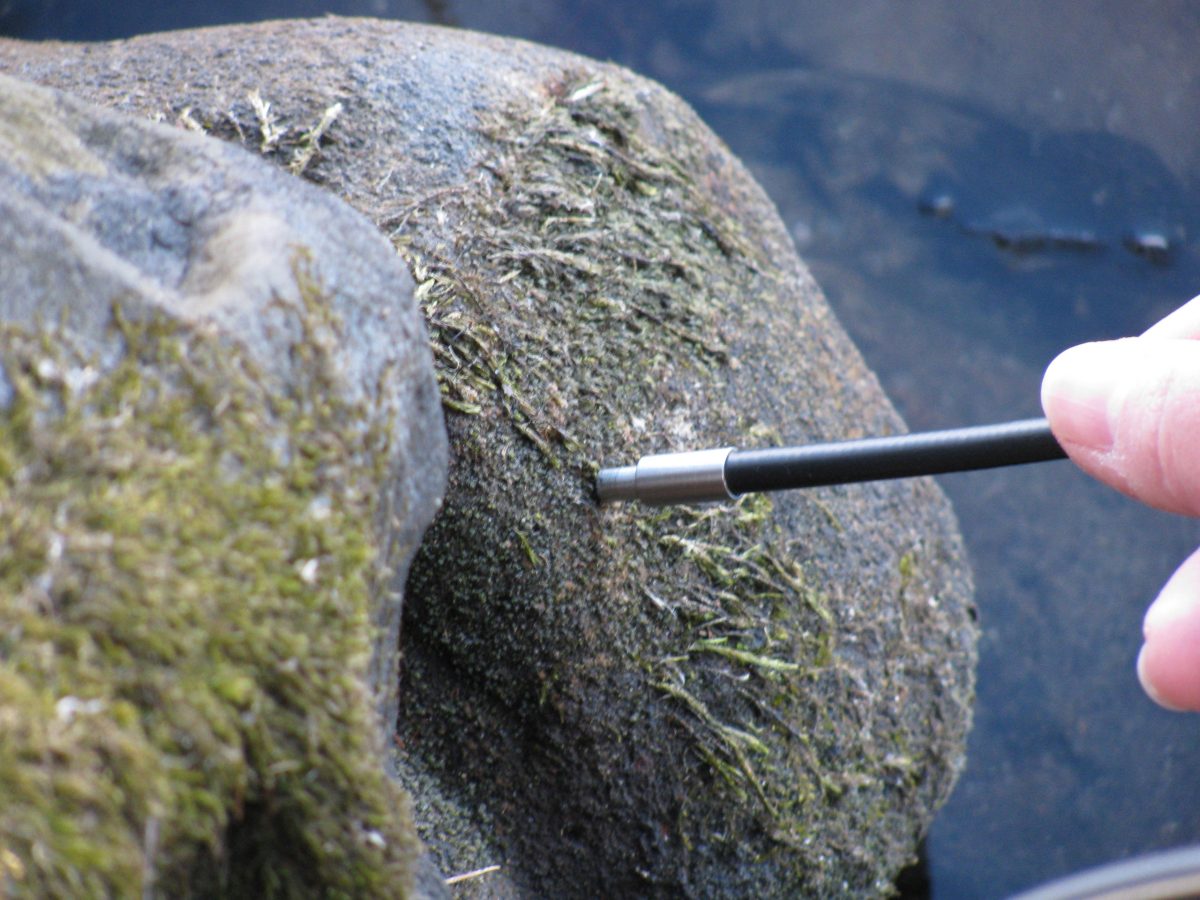

  • Measuring the chlorophyll content of algae with the CM-300 fiber optic probe

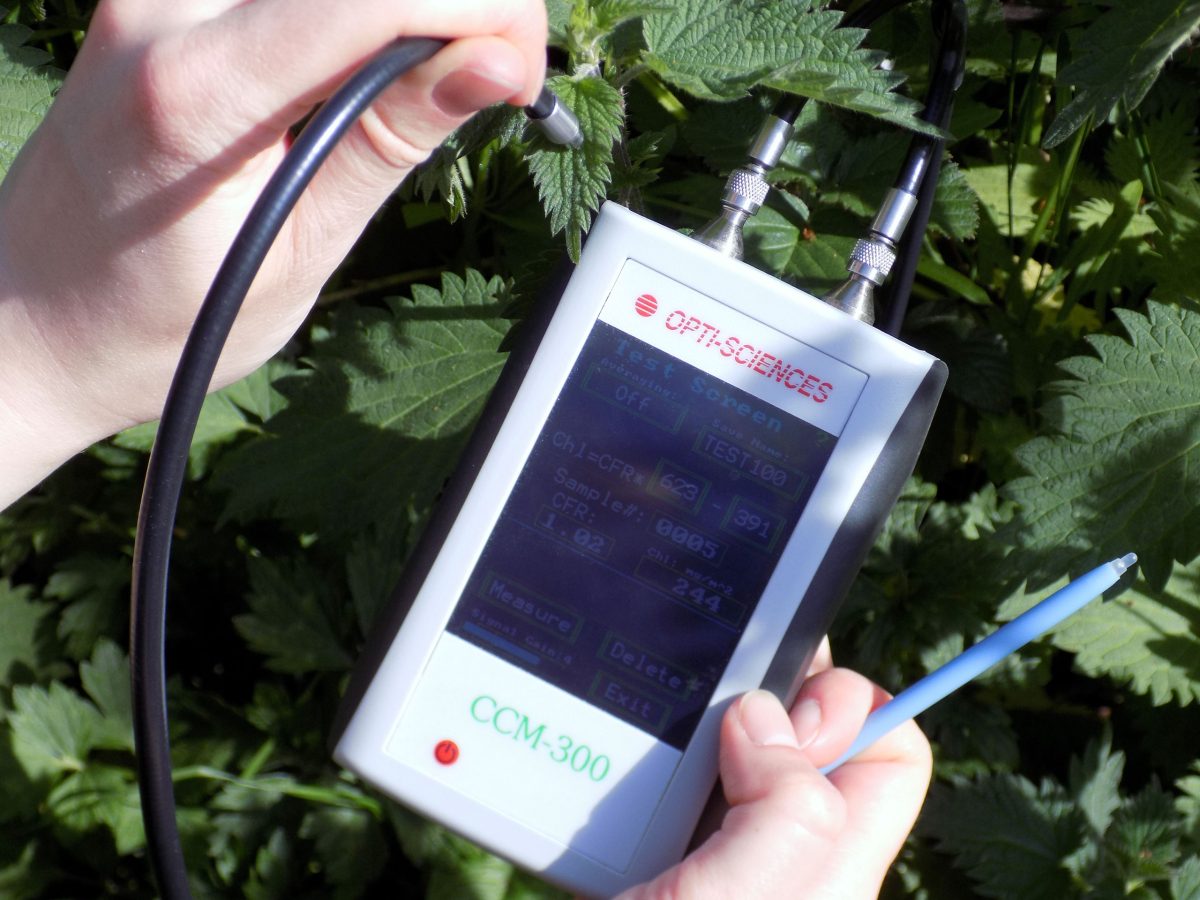

  • Measuring the chlorophyll content of a nettle leaf with the CM-300 fiber optic probe

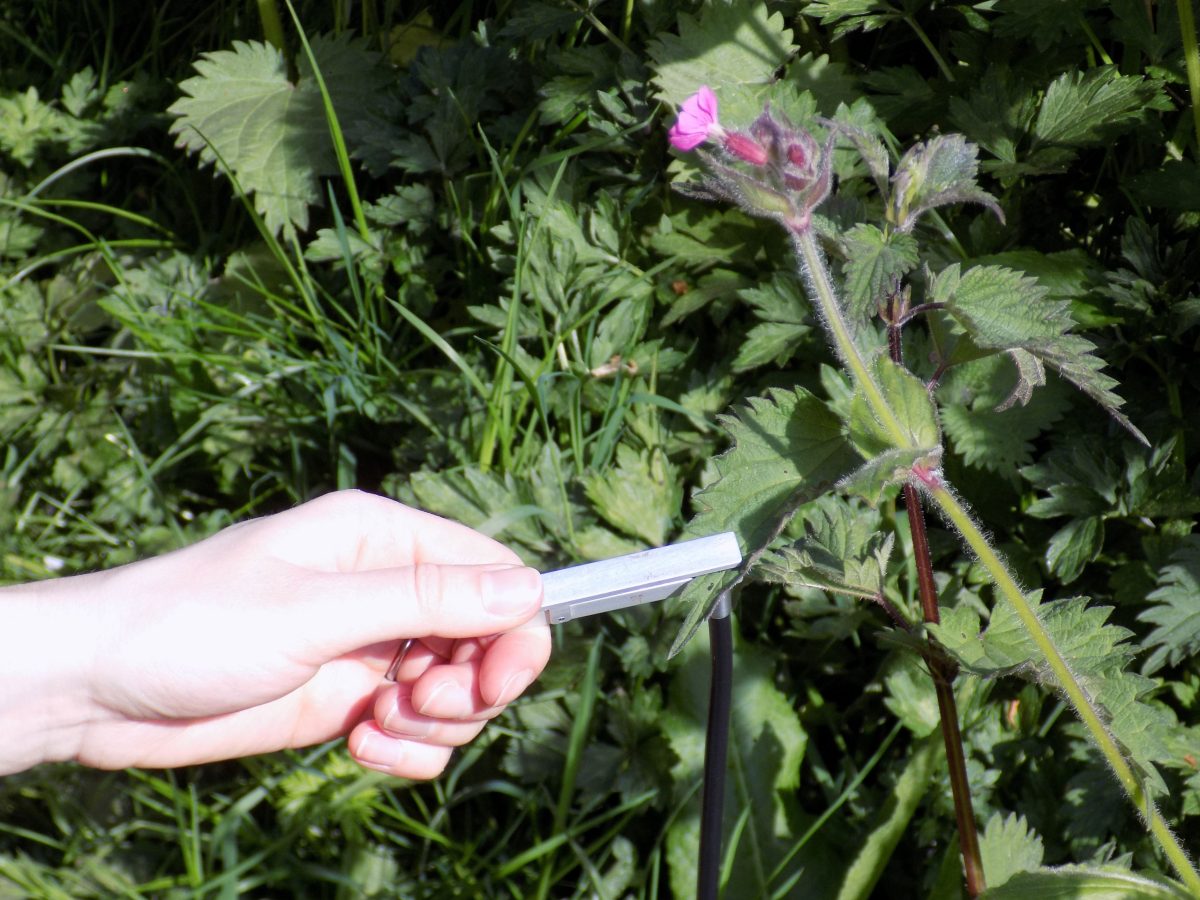

  • Measuring the chlorophyll content of a nettle leaf with the CM-300 leaf clip

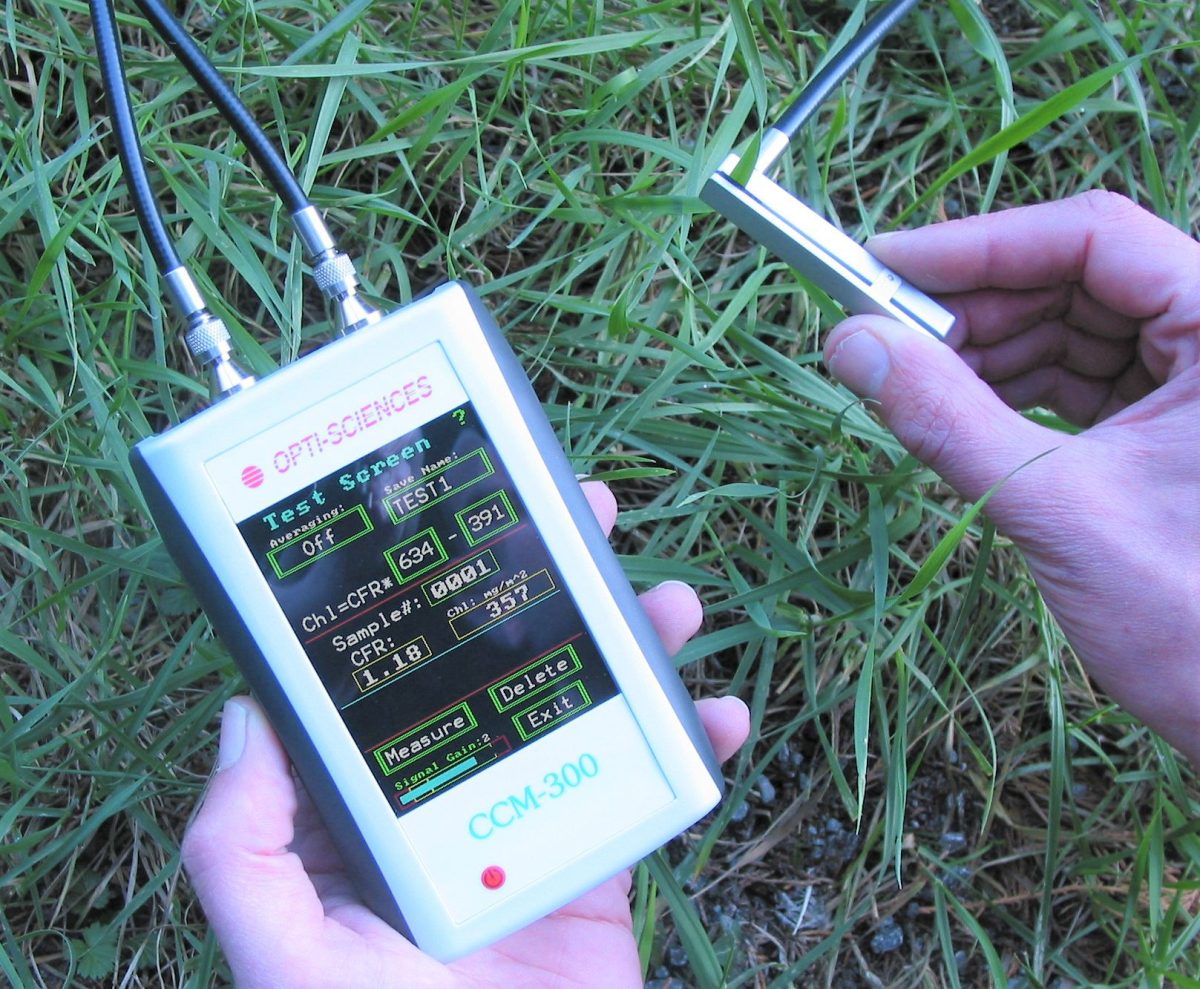

  • Measuring the chlorophyll content of grass with the CM-300 leaf clip

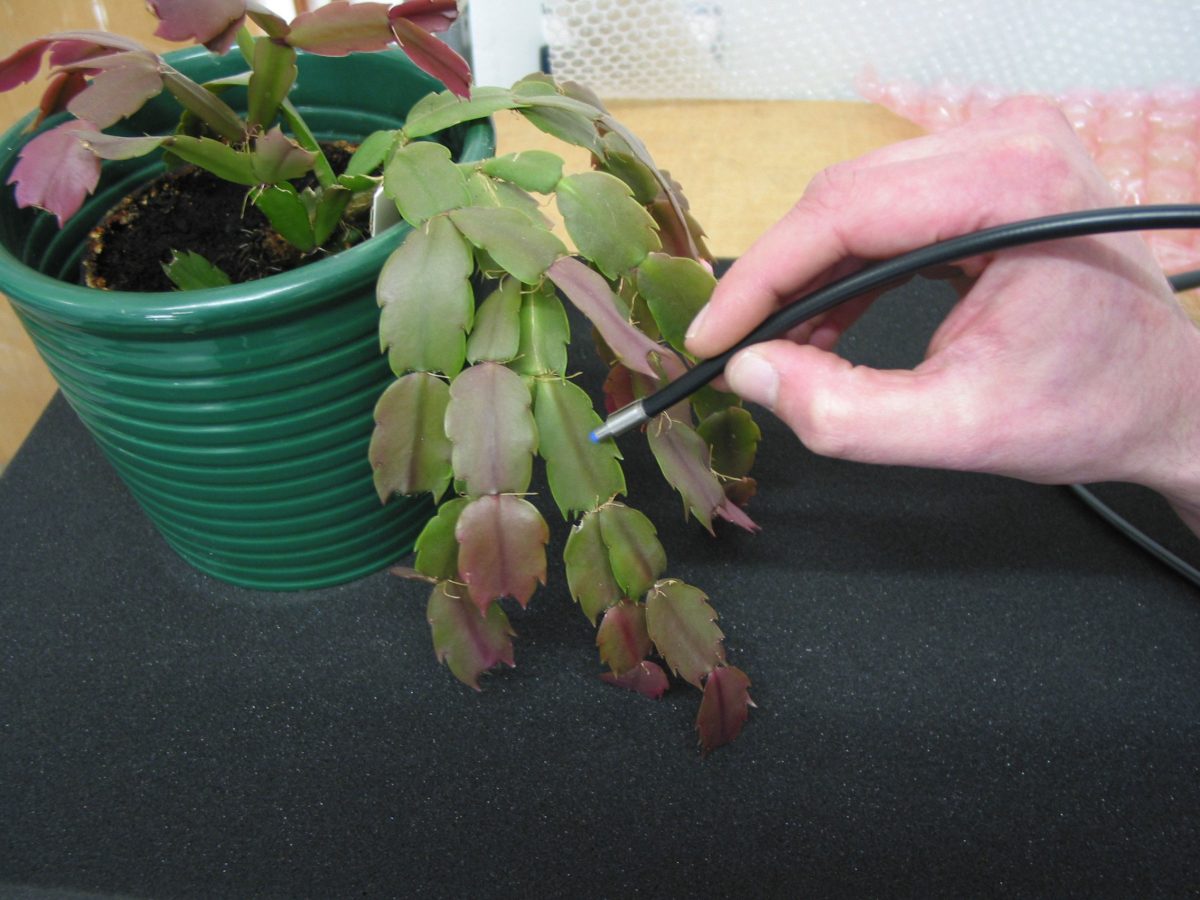

  • Measuring the chlorophyll content of a cactus leaf with the CM-300 fiber optic probe
  • Measuring conifer chlorophyll content with the CCM-300 leaf clip

    • How it works

    The CCM-300 employs the chlorophyll fluorescence ratio (CFR) method, measuring the emission ratio of red chlorophyll fluorescence from 700-710 nm to far-red fluorescence from 730-740 nm.

    This fluorescence-based approach surpasses traditional absorption techniques, providing accurate readings even with samples that do not fully cover the measuring aperture. This method ensures high reliability and correlation with chemical assays, especially at elevated chlorophyll levels.

    Key Features

    • Advanced Fluorescence Technology:
      Uses proven fluorescence emission ratios to deliver precise chlorophyll content measurements.
    • Versatile Sample Compatibility:
      Capable of measuring very small leaves, conifer needles, moss, lichens, turf grass, fruit, and other challenging samples accurately.
    • Flexible Measurement Modes:
      Offers single point measurement, averaging of multiple samples (2 ‑ 30), median calculation, and outlier removal using standard deviation.
    • Extensive Data Storage:
      Built-in flash memory with almost unlimited storage capacity (up to 2GB).
    • Integrated GPS:
      Automatically records GPS coordinates alongside chlorophyll measurements for precise location tracking.
    • User-Friendly Interface:
      Features a 320 x 480 pixel colour touch screen interface for intuitive operation and data management.
    • Direct Data Transfer:
      Outputs data via USB in CSV format for straightforward analysis using Excel or similar spreadsheet software.
    • Adjustable Gain Settings:
      Enables users to optimize signal strength for accurate measurements, even in low-light conditions.
    • Compact and Durable:
      Lightweight, battery-operated design optimized for field use.

    Enhance your research

    Discover the precision and reliability of fluorescence-based chlorophyll measurement. Contact us today to learn more, request a demo, or place your order for the CCM-300 Chlorophyll Content Meter.

    View documentation

    Resources

    • Measured Parameters: CFR (fluorescence emission ratio at 735 nm / 700 nm) or chlorophyll content in mg m-2
    • Measurement Area: 3.5 mm diameter (samples smaller than 3 mm measurable)
    • Resolution: 0.03 ratio units or 1 mg m-2
    • Repeatability: ±0.03 ratio units under optimal conditions
    • Noise Level: <±2%
    • Excitation Source: 460 nm blue LED, 15 nm half-bandwidth
    • Detection Method: Dual-wavelength (700 nm, 735 nm) simultaneous detection
    • Measurement Modes: Single, averaging (2 ‑ 30 samples), median, and standard deviation-based outlier removal
    • Storage Capacity: Up to 2 GB (100,000+ measurements)
    • GPS Accuracy: 2.5 m, 72-channel receiver supporting GPS, GLONASS, BeiDou, Galileo, and SBAS
    • User Interface: 320 x 480 pixel colour touchscreen
    • Data Output: USB (CSV format)
    • Operating Temperature: 0-50 °C
    • Power Source: 2 AA rechargeable NiMH batteries (8 ‑ 10 hours typical)
    • Auto-off: Programmable (0 ‑ 20 minutes)
    • Dimensions: 12 cm x 9 cm x 3 cm
    • Weight: 350 g (including batteries and fibre optic)
    • Measurement Duration: 2.5 to 10 seconds
    • Included Components: Fluorometer, fibre optic probe, leaf clip, calibration slide, rechargeable batteries, charger, USB cable, transport case, user manual
