CCM-200+ Chlorophyll Content Meter

The CCM-200+ Chlorophyll Content Meter is a hand-held device designed for the rapid, non-destructive determination of chlorophyll content in intact plant leaves.

Trusted by researchers, agronomists, and crop management specialists worldwide, the CCM-200+ offers instantaneous and reliable measurements critical for optimizing crop health, nutrient management, and environmental stress analysis.

Discover more
  • Measuring chlorophyll content with the CCM-200+

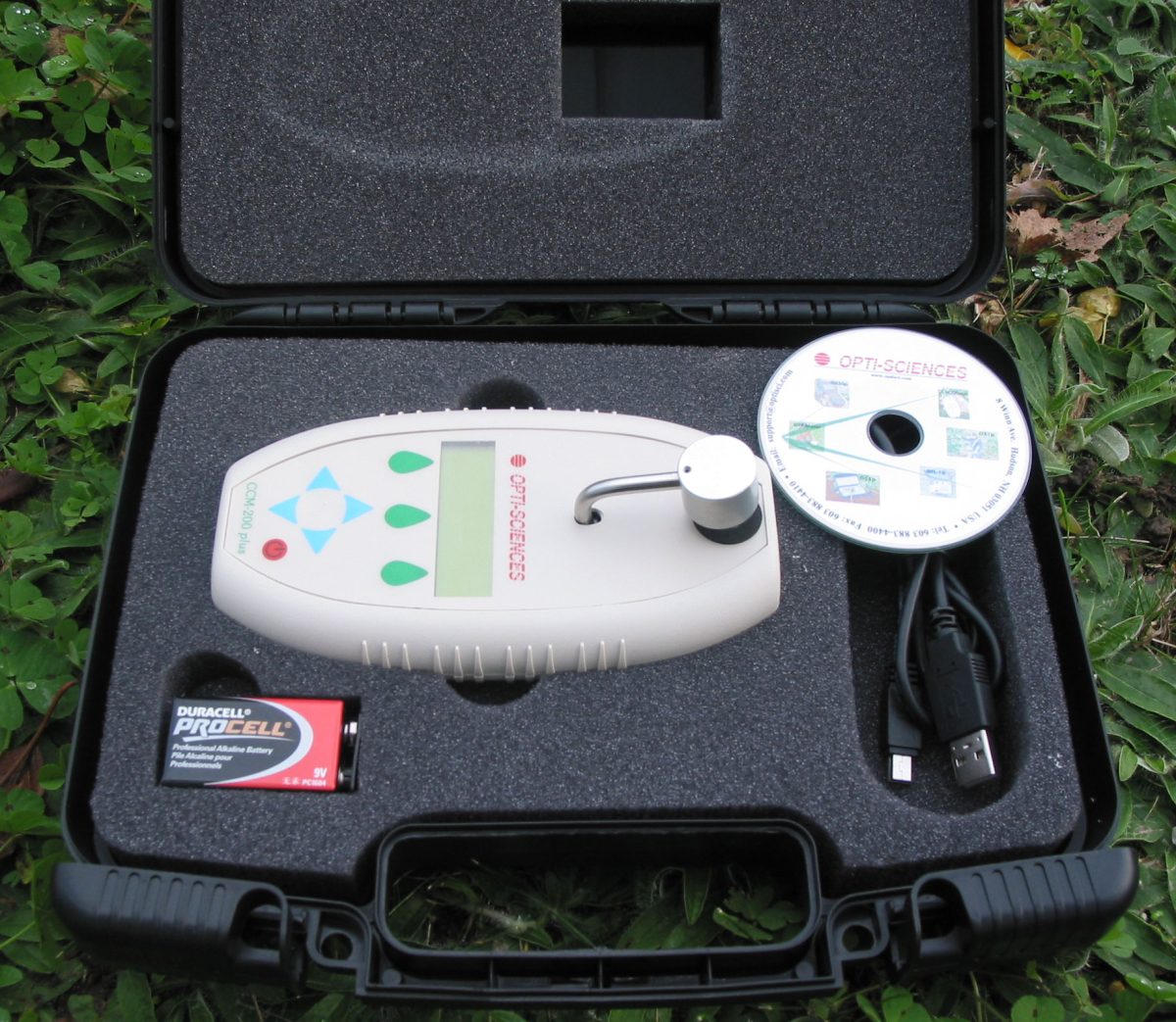

  • CCM-200+ in case

    • Key Features

    • Non-Destructive Measurement:
      Easily measure chlorophyll content without damaging leaf samples, enabling repeated monitoring throughout the growth cycle.
    • Extensive Data Storage:
      Store over 94,000 individual measurements, reducing the need for frequent data offloading.
    • Medical-Grade LEDs:
      Employs precise LED sources at 653 nm and 931 nm, ensuring accurate chlorophyll content and leaf thickness compensation.
    • Integrated GPS (optional):
      Precisely record geographical data alongside chlorophyll measurements with global accuracy between 0.3 to 2.5 meters.
    • USB Connectivity:
      Quickly and conveniently transfer data to a PC for further analysis using a simple USB connection.
    • Clear Visual Display:
      A high-contrast graphical display clearly shows results, measurement averages, and standard deviations.
    • Versatile Measurement Modes:
      Choose single measurements, averaging from 2 to 30 points, or multi-point averaging with standard deviation filtering for improved accuracy.
    • Robust Field Design:
      Lightweight, compact, and battery-operated, the CCM-200+ is optimized for reliable performance in diverse field conditions.

    Take the next step

    Enhance your crop management practices and research capabilities with precise, reliable chlorophyll measurements. Contact us today to learn more, request a demonstration, or place your order for the CCM-200+ Chlorophyll Content Meter.

    View documentation

    Resources

    • Measurement Parameters: Optical absorbance at 653 nm (chlorophyll) and 931 nm (leaf thickness compensation)
    • Measurement Area: 9.53 mm diameter (0.11 in²)
    • Accuracy: ±5% (validated by chemical correlation)
    • Repeatability: ±1%
    • Sample Acquisition Time: 2-3 seconds
    • Storage Capacity: 94,000+ measurements
    • Data Output: USB, RS-232 (for GPS or data transfer)
    • Display: 128 x 32 pixel graphical LCD
    • Battery: 9 V Alkaline battery
    • Auto Shut-off: 4 minutes inactivity
    • Operating Temperature: 0-50 °C
    • Dimensions: 152 mm x 82 mm x 25 mm
    • Weight: 162 g (with battery)

    Technical documents

    CCM-200+ Operating Manual

    Product brochure

    CCM-200+ Brochure

    References

    CCM-200+ Publications List
    Google Scholar Search

    Applications

    • Nitrogen management
    • Crop stress detection
    • Herbicide impact studies
    • Environmental stress monitoring
    • Educational purposes across agricultural and ecological research.
